Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Hangzhou Target
  • Model Number: C11000/C1100/T2
  • Application: Furnace Burden
  • Thickness: 5mm~200mm
  • Shape: Plate, Sheet
  • Width: 30~1200mm
  • Grade: Pure Copper
  • Cu (Min): 99.90%
  • Alloy Or Not: Non-alloy
  • Ultimate Strength (≥ MPa): 245~345
  • Elongation (≥ %): 8
  • Export to: Singapore/USA/Germany/Dubai etc
  • Surface: Bright/Mirror/Brushed/Polised etc
  • Type: Copper
  • CERTIFICATE: SGS BV ISO TUV
  • Hardness: 1/2 Hard/1/4Hard/ Hard
  • Package: Sea Worthy Package

Packaging & Delivery

Packaging Details 500kgs on wooden pallet or box
18~20tons/20 container
22~24tons/40 container
Delivery Time Shipped in 20~ 25 days after payment

Good quality  Copper Sheet  For Furnace  Burden







Product:  Good quality Copper Sheet  For Furnace  Burden

Alloy: C1100 C1020 T2 Cu-ETP CW004A

Temper: soft, 1/4 hard, 1/2 hard, 3/4 hard, hard, etc.

Thickness:5~200mm

Thickness tolerance:     min +/- 0.1mm       max +/- 0.5 mm

Width: 100~1200 mm

Standard:  JIS  ASTM  ROHS

Flatness 1 unit:     min ≤12          max ≤3



Packaging & Shipping


Neutral packing, plastic bag, paper core, the plywood pallet or case.

18~20 ton can be loaded in 1x 20 'container.

Suitable for sea transportation.











Alloy No   TemperMechanical Properties
 Tensile strength(N/mm2) Elongation(%) Vickers hardess(hv)
 GB JIS GB JIS GB JIS GB JIS GB JIS
    T2    C1100     M ≥195 ≥195 ≥30 ≥30 ≤70 -
 Y4 1/4H 215-275 215-285 ≥25 ≥20 60-90 55-100
 Y2 1/2H 245-345 235-315 ≥8 ≥10 80-110 75-120
 Y H 295-380 ≥275 ≥3 - 90-120 ≥80
 T EH ≥350 - - - ≥110 -
 TY SH --

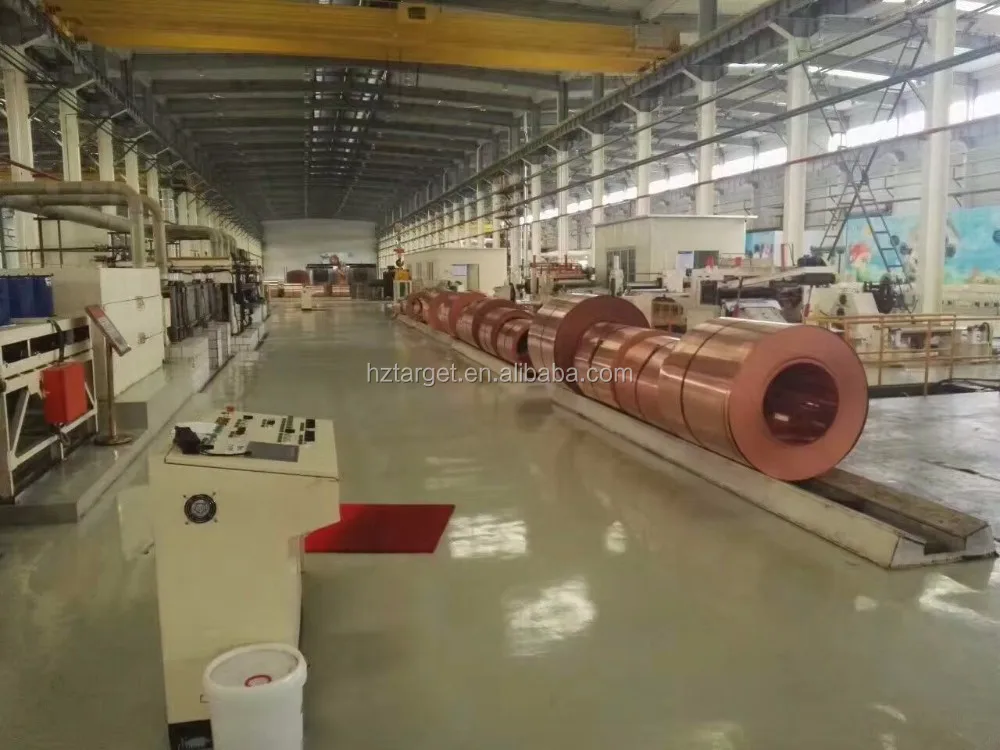

Workshop









Production Process:



1. Melting & Casting

Various raw materials (Copper, Zinc, Nickel, Aluminum and other metals) are melted and then casted to rectangular slabs.





2. Slab Heating & Hot Rolling

The slabs are heated so that the metal slab is soft enough for hot rolling. The hot rolled plate is coiled for easier handling.





3. Scalping

Hot rolling in high temperature creates oxide scale. These unwanted scales are removed by scalping process, using cutter to shave away oxidized coil surface.





4. Rough Rolling

Rough rolling intensively reduces strip thickness.





5. Annealing

The strip which undergone rough and cold rollings is hardened and lost ductility. The work stress is eased by heating to have re-crystallized grain structure in the annealing process.





6. Pickling

Pickling process uses acid & brush to remove oxidation scales from annealing.





7. Finish rolling

Final rolling requires precise thickness and strip shape control. Latest technology enables to deliver superior product quality.





8. Tension Levelling

Strip shape is adjusted by using tension leveling machine.





9. Slitting

The strip which went through the various production process to meet mechanical properties requirements will be finally slitted to required sizes width and length wise.





10. Packing

The product is carefully inspected prior to packing and labeling.
